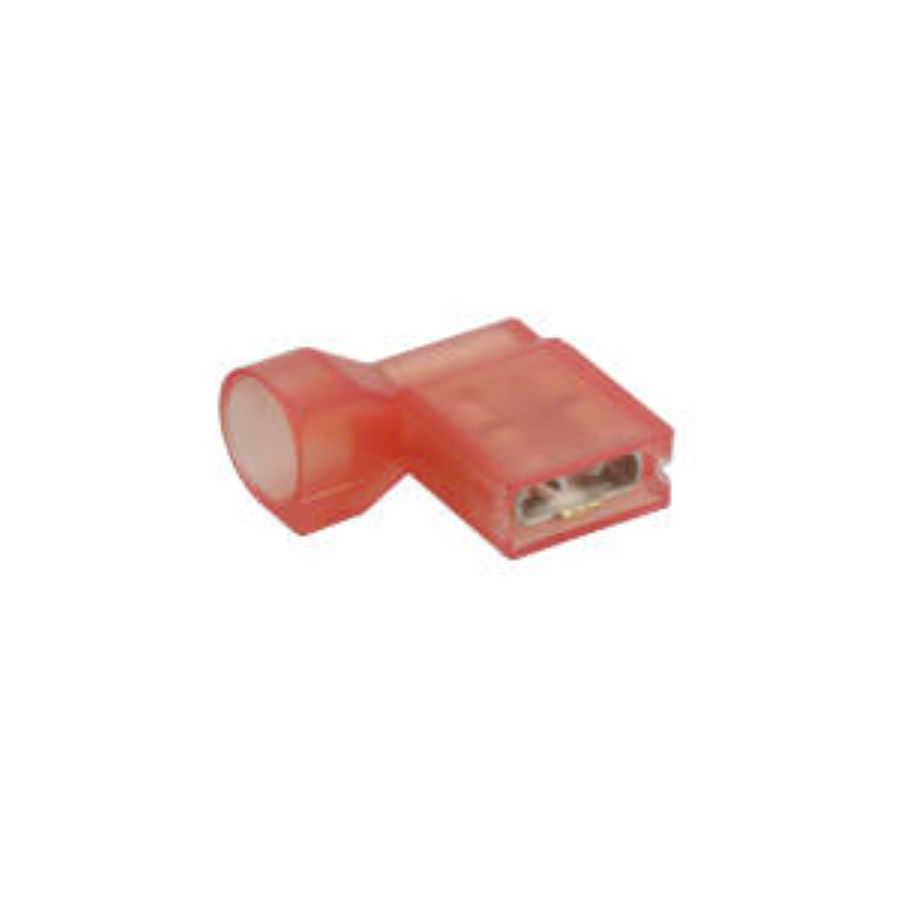

2-520856-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2-520856-2
Datasheet:
Description:
Terminals 22 AWG Female
| Parameter | Value |
|---|---|
| Length | 16.002 mm |
| Termination | Receptacle |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Material | Brass |
| Packaging | Bulk |
| Depth | 16 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94V-2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Red |
| Gender | Female |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 5.842 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 22 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 5.84 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 12
Distributors
pcbx
pcbxUnit Price$0.21734
Ext.Price$0.21734
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21734 | $0.21734 |
| 10 | $0.19742 | $1.97420 |
| 50 | $0.17933 | $8.96650 |
| 100 | $0.16083 | $16.08300 |
| 500 | $0.14424 | $72.12000 |
| 1000 | $0.13966 | $139.66000 |
| 3000 | $0.13522 | $405.66000 |
| 5000 | $0.13093 | $654.65000 |
